Tips before purchase!

①All products are fully inspected before shipment and are accompanied by a production traceability QR code, making after-sales follow-up more convenient

②The APP can be software upgraded, so you will always get the latest features and updates.

System Mode:

① Energy saving mode: stop heating immediately after reaching the set temperature, no longer floating

② PID comfort mode: after reaching the set temperature, float to the optimal temperature automatically calculated by PID

Mode Temperature (adjustable):

Comfort mode 20℃, ECO mode 15℃, Anti-freeze mode 5℃, OFF mode (valve completely closed)

Automatic: Weekly programming mode, Vocation mode (Turn on the anti-frost mode during the selected time period to prevent pipes from freezing)

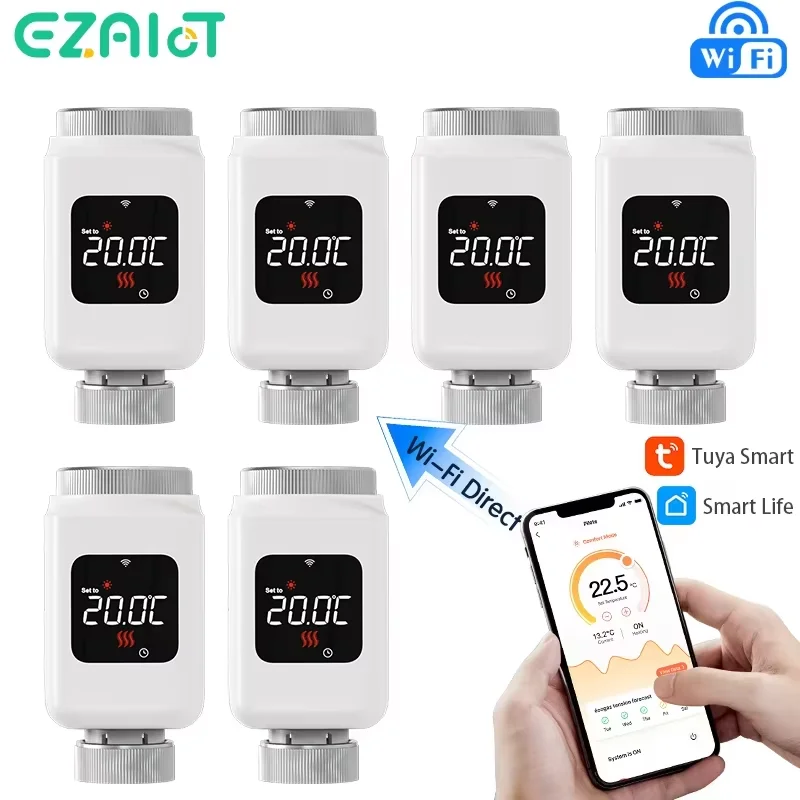

【Tuya WiFi Smart TRV】-No ZigBee hub required! Connect this product directly to Tuya Smart/Smart Life APP

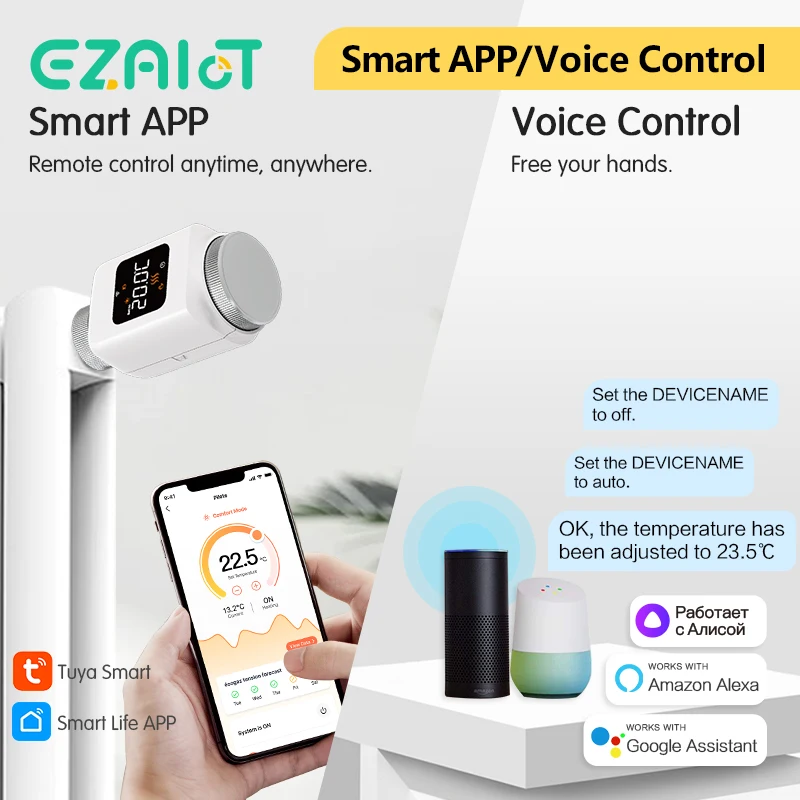

【APP Remote Control】-Control the radiator thermostatic valve anytime, anywhere through the mobile phone APP

【Voice Control】-Voice control TRV with a simple command

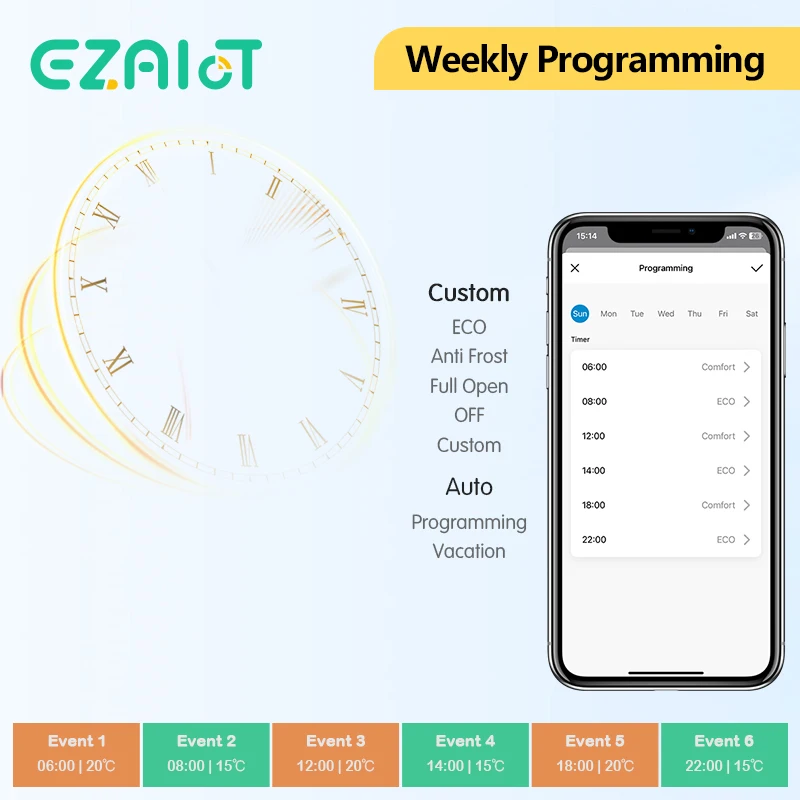

【Weekly Programming】-Customize the temperature for 7 days a week and 6 time periods a day according to your needs

【6 Adapters】-The package contains 6 different adapters, suitable for heating equipment of different sizes, simple installation, and installation guides are provided

【Temperature Calibration】-When there is a difference between the floor and air temperature, you can set the calibration value through the App to ensure that the final temperature reaches your ideal value

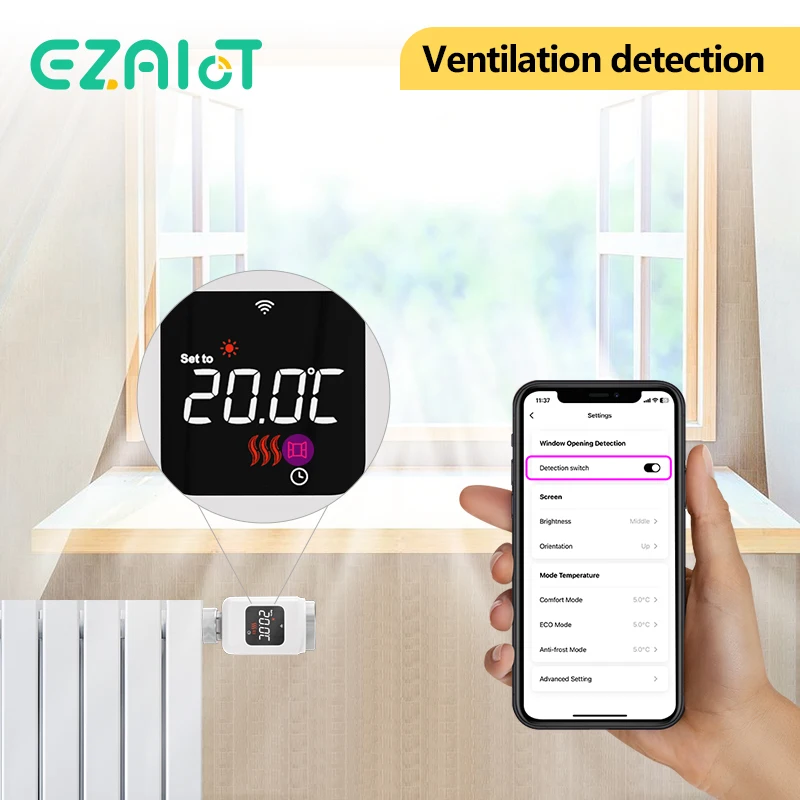

【Window Opening Detection】-When the temperature drops rapidly, the window opening can be sensed, and the valve will suspend heating for 30 minutes to achieve energy saving and environmental protection

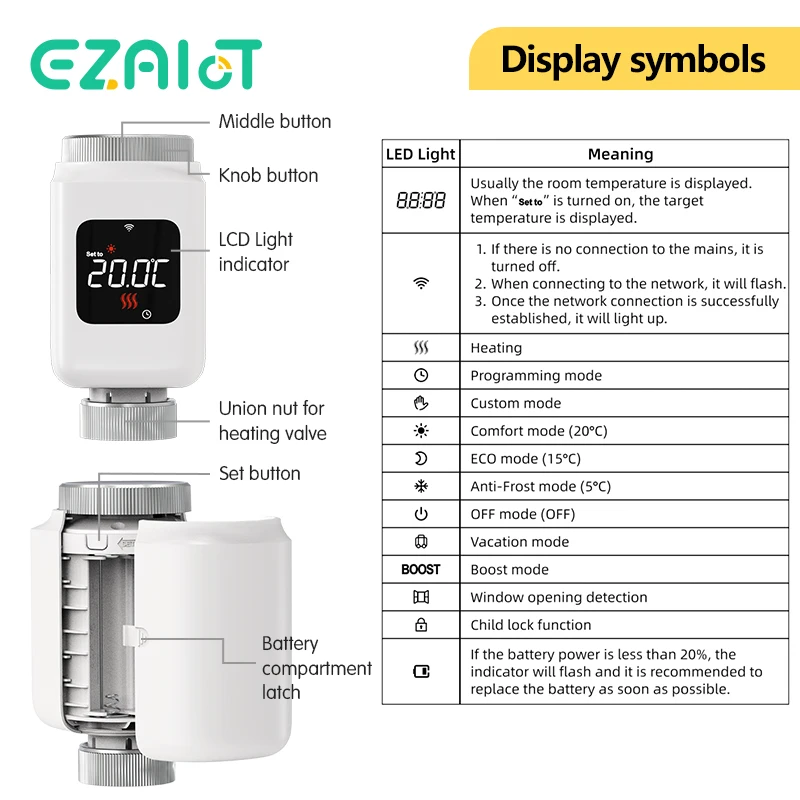

【Visual Display】-Adjustable 3 levels of brightness, synchronized display of temperature and status with the APP

【Flexible Screen Rotation】-Both the APP and the device can adjust the up and down direction of the screen display to ensure that different installation directions can be used normally

【Child-Lock】-Ensure your home is in a smart and safe state

Technical Specifications

WIFI：2.4GHz

Power supply: 3*1.5V AA alkaline batteries (not included)

Standby current : 6μA Min

Protection class:IP20

Display accuracy:0.1℃

Switching deviation:0.5℃

Temperature calibration:-10~10℃

Default temperature adjustment range:5~35℃

Storage temperature: -20~70℃

Surface temperature: 90℃ max (heater surface)

Linear travel: 6mm

Thread size: M30*1.5mm

Dimension (W x H x D): 59.7mm x 95.3mm x 59.7mm

Screen brightness: high, medium, low

Package List

1*Radiator thermostatic valve

1*Instructions

6*Adapter
